Operator

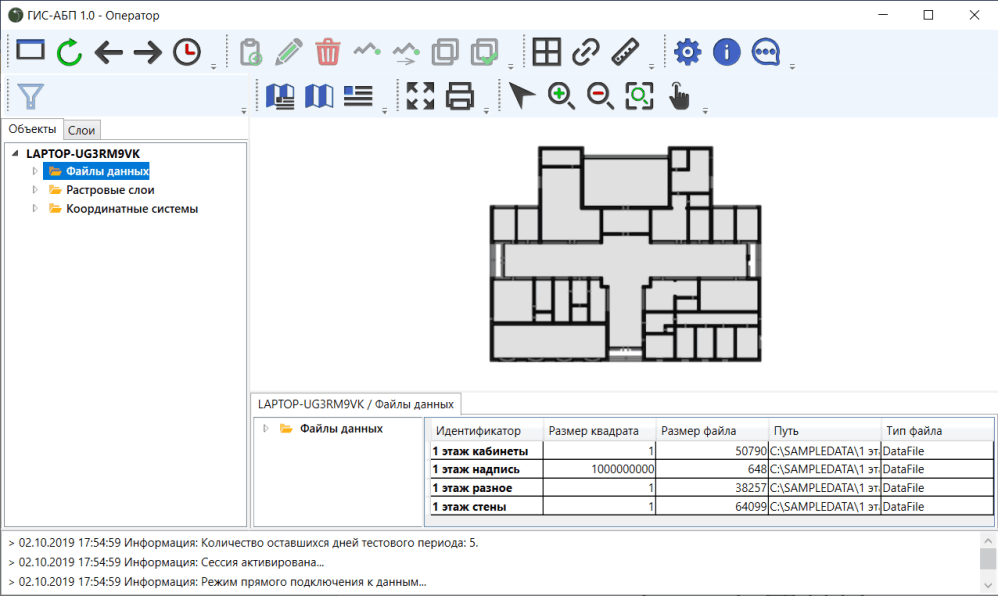

In the "Operator" mode, the GIS-ABP application allows you to display spatial and attribute data, as well as perform simple built-in commands.

Before you begin, copy the SAMPLEPLAN directory, which is located in the application directory (C:\Program Files (x86)\ABP\GIS-ABP\SAMPLEPLAN), to the root directory of the drive, for example, drive C :. The directory C:\SAMPLEPLAN must have the current user full access permissions. This is necessary for editing data.

Click the "Settings" button.

In the settings window that opens, set C:\SAMPLEPLAN as the value of the DataFolder and RasterDataFolder parameters, the value of the ClientServerMode parameter is false, click OK.

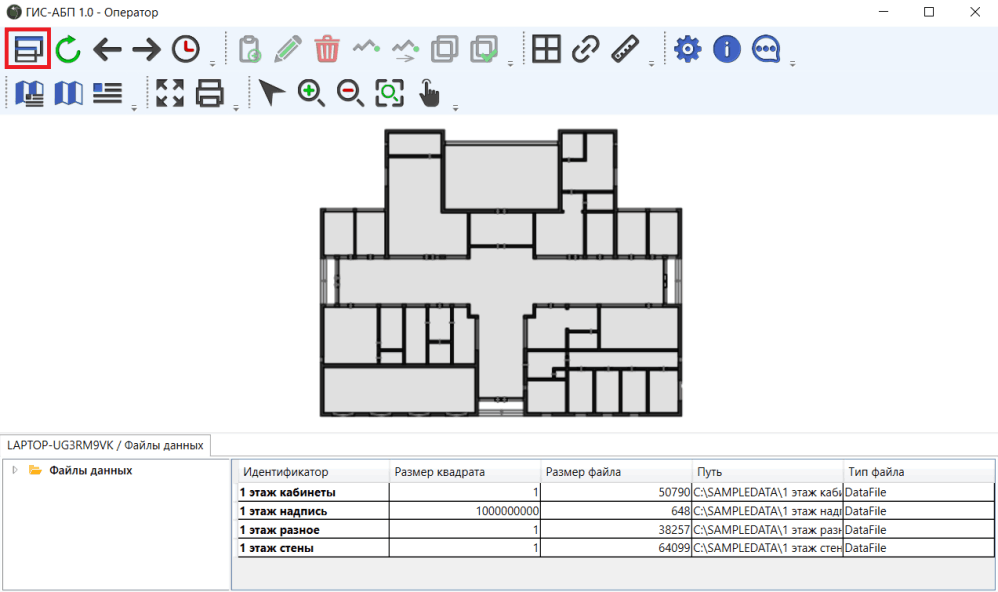

Window mode button

The Window mode button allows you to switch between the "Full-window" mode and the "Explorer" mode, in which the tree of objects and the list of map layers are displayed on the left, and the status bar is in the lower part of the application window.

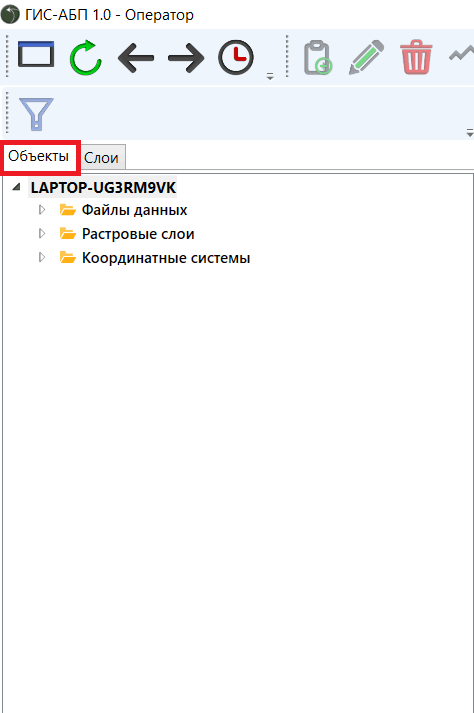

Objects tree

Allows you to move between data files, data objects, and other tree nodes.

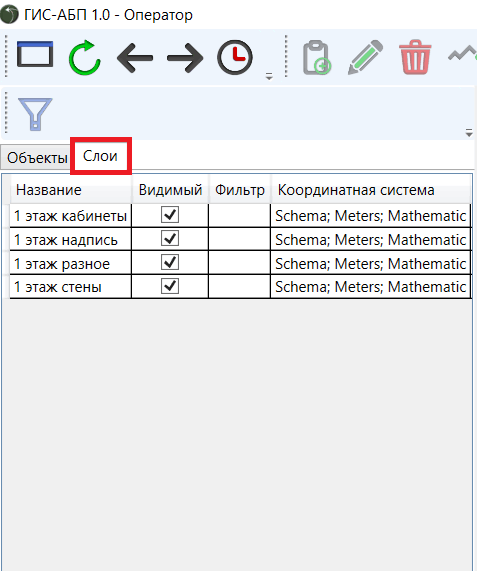

Turn on / off map layers.

Refresh button

The Refresh button allows you to update the map, tree and data in the data table (in grid).

Forward - back Buttons

The Forward-Back buttons allow you to return to the previous screens displayed on the map and previous objects selected in the tree, and then again move forward.

Time interval button

The GIS-ABP application allows you to simulate the state of the same object at different points in time. This functionality is useful when viewing (analyzing) historical data, as well as in planning (when modeling future events).

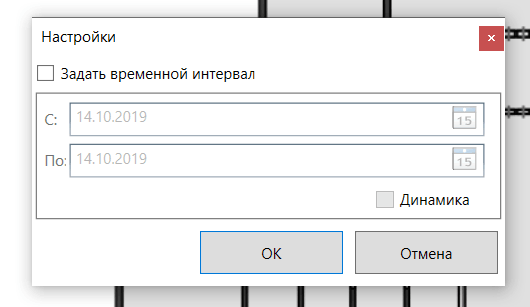

After pressing the “Time Interval” button, the time interval settings dialog is displayed:

· Set the time interval - activation/deactivation of the display mode of the states of objects within a given time interval;

· Dates - date range of the time interval;

· Dynamics - the display of the states of objects in dynamics, the time interval gradually shifts from the start to the end date.

Editing objects

The GIS-ABP application uses three types of data files:

· DataFile;

· Sketch;

· Analytics.

In the “Operator” application operating mode, you can edit data from data files such as Sketch and Analytics. More details on editing these objects are discussed in the "Developer" section.

In the "Operator" application operating mode, only data files of the type Analytics can be created and deleted. More details on editing these objects are discussed in the "Developer" section. Information on configuring data files is located in the Administrator section.

Show grid button

Button "Show grid" - enable / disable grid lines and snap to them.

Snap to vertex button

Turns on/off the snap mode to the vertices of object geometries when placing and editing objects.

Ruler button

Measure distance.

Settings button

Display the settings dialog. You can read more about setting up the application in the sections "Settings", "Direct Connection" and "Client-Server Mode".

About program button

Display program information.

License agreement button

Displays the terms of the license agreement.

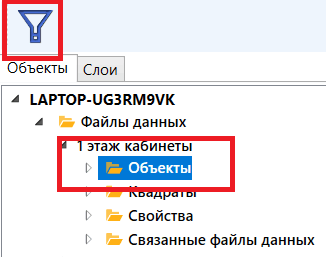

Filter button

Displays the Filters dialog. The button is active when selecting the “Objects” folder in the tree (filter of objects displayed in the tree), or when selecting a layer (filter of objects displayed on the map).

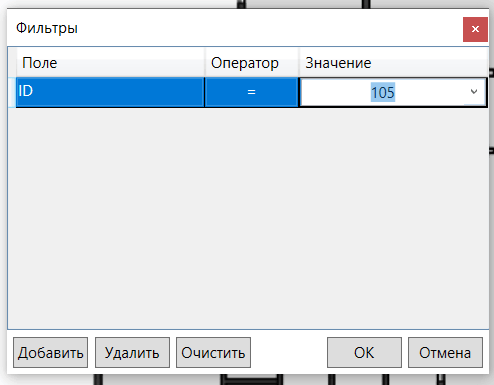

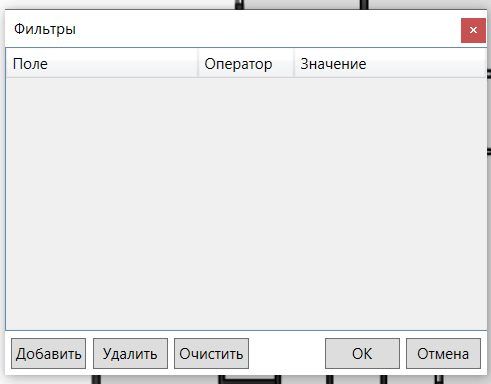

After clicking the "Filter" button, the filter settings dialog is displayed:

· Add - add a new filter;

· Delete - delete the filter;

· Clear - delete all filters;

· OK - saving filter settings and closing the dialog;

· Cancel - closes the dialog without saving the filter settings;

· Column “Field” - selection of an attribute of an object;

· “Operator” column - selection of a comparison operator;

· Column “Value” - selection of attribute value for filtering.

Map and attributes button

Displays the map and attributes on the right side of the application window.

Map button

Displaying only the map on the right side of the application window.

Attributes button

Display only the attributes of the object on the right side of the map window.

Zoom to extents button

If the object selected, the selected object is displayed within the borders of the map window. If the layer selected, all layer geometry objects are displayed within the borders of the window maps.

Print button

Printout.

Arrow button

Activate the mode of selecting objects on the map.

Zoom in button

Activate map zoom in mode.

Activate map zoom out mode.

Select area button

Activate the map area selection mode.

Pan buttion

Activation of the moving map by "Hand" mode.

Analytics commands

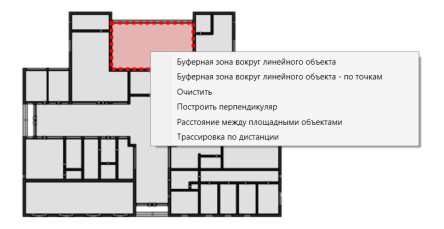

Select the object on the map, or in the objects tree, click the right mouse button - a context menu appears that contains several standard analytical commands available in the Operator application mode for the data object.

· Buffer zone around a linear object;

· Buffer zone around a linear object - by points;

· Clear;

· Build a perpendicular;

· Distance between areal objects;

· Tracing by distance (this analytical team works on the basis of the connectivity model, which is configured in the operating mode of the Administrator application;

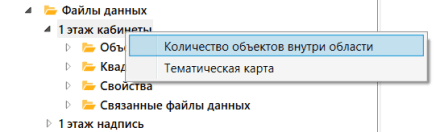

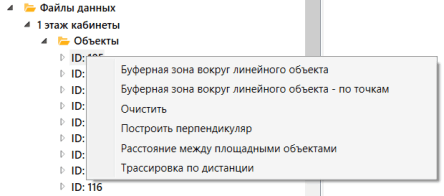

Select the data file in the object tree, click the right mouse button - the context menu appears, which contains several standard analytical commands available in the Operator application mode for the data file.

Analytics command execution

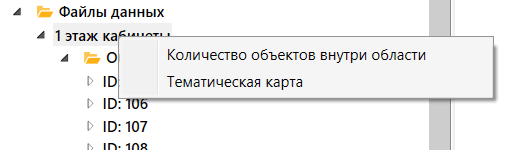

Select the data file in the tree with the right mouse button, select the "Number of objects within the area" command.

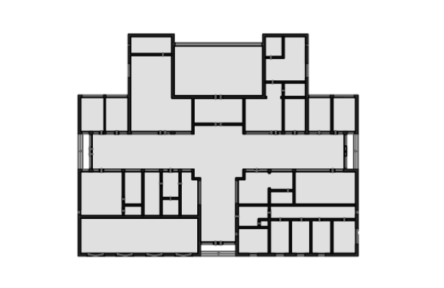

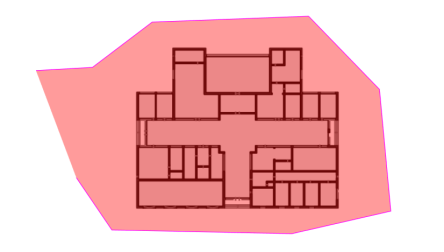

Select an area on the map, click the right mouse button.

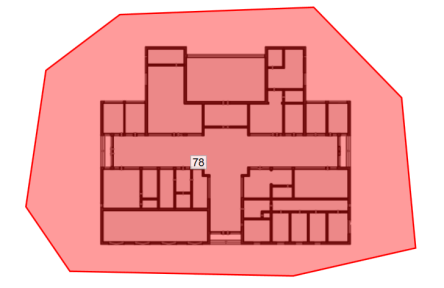

The screen displays the number of objects in the specified layer (data file), which is located inside the selected area.

Press Escape, the results of the command will be reset.
